STOCK PICKER LADDER TRUCKS

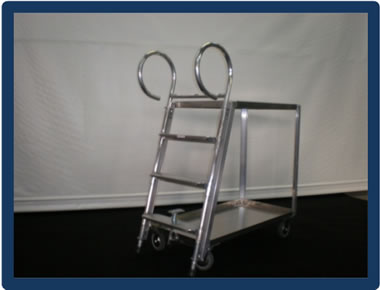

3-STEP ALUMINUM LADDER CART (S-3-1)

Product Type: Ladder Cart
Weight:
55
Capacity: 500
Dimensions: 20 x 45 x 50
Options/Variations: Custom Shelf Sizes, High capacity
Casters

Stock Picker Ladder Cart | 3 Step Ladder | 2 Shelf |
Aluminum picking cart ideal for picking and packaging
operations, as well as many other applications. All
welded construction provides extra strength for heavy
loads. 5" wheels standard, can be upgraded to increase
capacity.

FEATURES
• Stable stock picking up to 8’.
• Average 90” eye level.
• Compact, maneuverable design.
• Available with or without Step-Lock.
• Safety rails and non-slip steps.
• Customizable to fit your specific application.
Comes with step lock

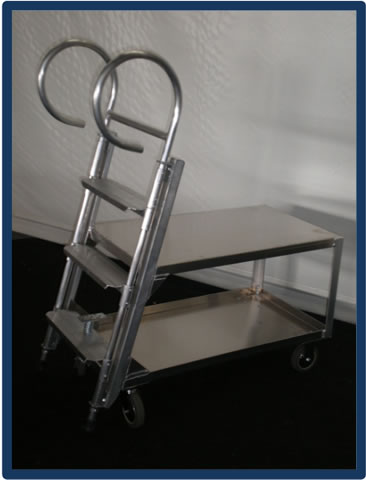

3-STEP ALUMINUM LOW-DECK LADDER CART (S-3-1-LD)

Product Type: Ladder Cart
Weight:
56
Capacity: 500
Dimensions: 20 x 45 x 50
Options/Variations: Custom Shelf Sizes, High capacity
Casters

Stock Picker Ladder Cart | 3 Step Ladder | 2 Shelf |
Lowered Deck | Aluminum picking cart ideal for
picking and packaging operations, as well as many
other applications. All welded construction provides
extra strength for heavy loads. 5" wheels standard,
can be upgraded to increase capacity.

FEATURES
• Average 8' eye level.
• Compact, maneuverable design.
• Available with or without Step-Lock.
• Safety rails and non-slip steps.
• Customizable to fit your specific application.
Comes with step lock

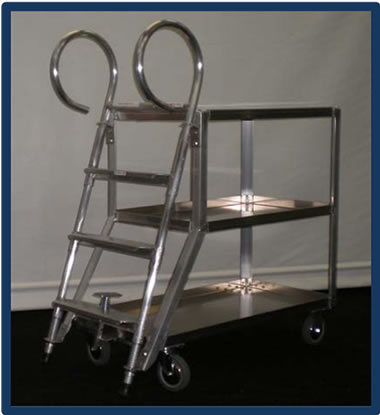

3-STEP ALUMINUM LADDER CART (S-4-1)

Product Type: Ladder Cart
Weight:
68
Capacity: 500
Dimensions: 20 x 45 x 50
Options/Variations: Custom Shelf Sizes, High
Capacity Casters

Stock Picker Ladder Cart | 3 Step Ladder | 3 Shelf |
Aluminum picking cart ideal for picking and packag-
ing operations, as well as many other applications.
All welded construction provides extra strength for
heavy loads. 5" wheels standard, can be upgraded
to increase capacity.

FEATURES
• Stable stock picking up to 8’
• Average 90" eye level.
• Compact, maneuverable design.
• Safety Step-Lock
• Safety rails and non-slip steps.
• Customizable to fit your specific application.

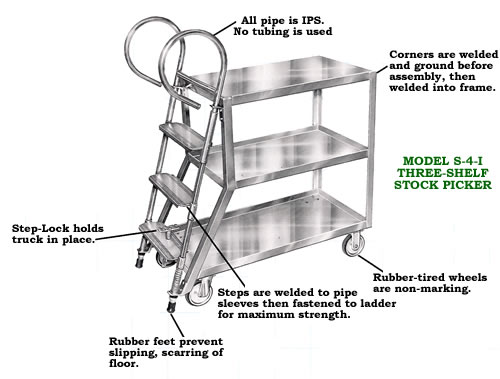

ladder guides three shelf stock picker
Ladder guides are bolted to
frame and are adjustable.
Delrin guide sleeves reduce
friction by eliminating
metal-to-metal contact ...
no lubricant is ever needed.
spring loaded ladder
top shelves Top shelves with flanges
turned down are reinforced
with angle or channel if
subject to severe use.
Spring-loaded ladder is locked down
onto rubber feet by foot pressure,
keeping truck from rolling. Return
bumper stop eliminates noise
and wear.
Comes with step lock

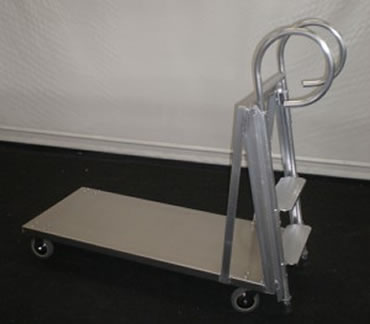

3-STEP ALUMINUM LADDER CART (S-4-1-FB)

Product Type: Ladder Cart
Weight:
50
Capacity: 500
Dimensions: 20 x 45 x 50
Options/Variations: Custom Shelf Sizes, High
Capacity Casters

Stock Picker Flatbed Ladder Cart | 3 Step | 1 Shelf |
Aluminum picking cart ideal for picking and packag-
ing operations, as well as many other applications.
All welded construction provides extra strength for
heavy loads. 5" wheels standard, can be upgraded
to increase capacity.

Comes with step lock

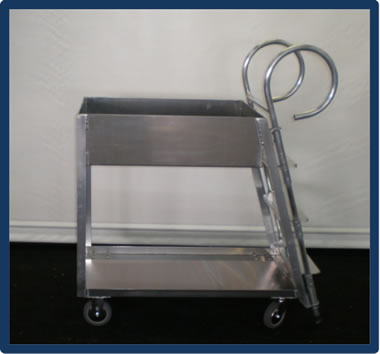

3-STEP ALUMINUM LADDER CART (DT-1)

Product Type: Ladder Cart
Weight:
68
Capacity: 500
Dimensions: 20 x 45 x 50
Options/Variations: Custom Shelf Sizes, High
Capacity Casters

Stock Picker Deep Tray Ladder Cart | 3-Step
Ladder | 2-Shelf
Aluminum picking cart ideal for picking and packag-
ing operations, as well as many other applications.
All welded construction provides extra strength for
heavy loads. 5" wheels standard, can be upgraded
to increase capacity.

FEATURES
• 8 ¼” deep tray
• Compact, maneuverable design.
• Safety Step-Lock
• Safety rails and non-slip steps.
• Customizable to fit your specific application.
Comes with step lock

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


PRICING AND SPECIFICATIONS FOR STOCK PICKER LADDER TRUCKS
Dimensions in inches, weight in pounds.
DESCRIPTIONS
MODEL NO.'S
Width, overall 20 20 20 20 20
Length, overall 45 45* 45 45 45
Height, overall 50 50 50 50 50
Height, top step 30 31 30 30 30
Height, top shelf 38 30 38 - 30t
Average max, eye level 90 90 90 90 90
Shelf, top 19 1/2 x 31 1/2 19 1/2 x 34 19 1/2 x 31 1/2 - 19 1/2 x 31 1/2
Shelf, center - - 19 1/2 x 31 1/2 - -
Shelf, bottom 19 1/2 x 39 1/2 19 1/2 x 39 1/2 19 1/2 x 39 1/2 19 1/2 x 39 1/2 19 1/2 x 39 1/2
Flange clearance (between shelves) 28 3/4 20 1/4 13 1/2 - 22
Steps 4 3/4 x 17 4 3/4 x 17 4 3/4 x 17 4 3/4 x 17 4 3/4 x 17
Net weight 55 56 68 50 64
Shipping weight (estimated) 65 66 78 60 74
Load capacity, load at rest 500 500 500 500 500
PRICE
$2,084
$2,084
$2,214
$2,214
$2,411
Material - satin-finish aluminum, 1/8" sheet and 3/4" IPS pipe.
Casters - 5", corner-mounted, 2 fixed, 2 swivel on ladder end.
*51" with optional extension † 8 1/4" deep tray †† Add 3 lbs. For optional shelf extension

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


OPTIONS
STEP LOCK step lock
The Step Lock is standard on many ladder trucks
and may be ordered as an option on any other ladder
truck. Locks down ladder even when user is off ladder.
Eliminates rolling on inclines or while loading truck.
PART #B0006-1 PRICE: $121.00
WRITING SHELF
writing shelf
Provides convenient out-of-the-way protection for stock
lists or other papers. Slides out from beneath top shelf from
either end of truck. Available on all trucks with flat shelves.
PRICE: UPON REQUEST
SANDED STEPS (not shown)
Sand-grit step surfaces may be ordered for ladders in
place of the standard step-tread.
PRICE: $22.90 Each Step
extension shelf
EXTENSION SHELF
A 6-inch reinforced shelf-extension is available for all
low- and medium-height ladder trucks with a top shelf.
PRICE: UPON REQUEST
