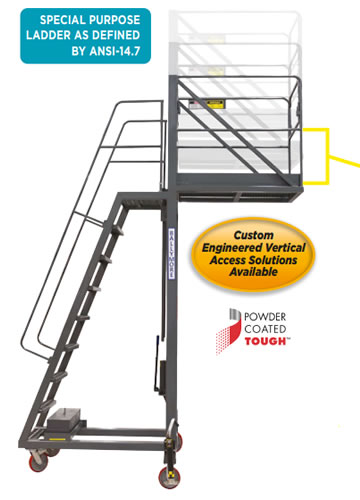

Tank Top Lifts

Adjustable Height Cantilevered Platforms provide safe access to Tank Trucks, Railroad
Cars, Conveyor Systems, Machinery or other applications with limited access.
FEATURES:
• 9' to 13' adjustable work height
• Provides easy access to tank trucks, railroad
   cars & other cantilevered applications
• Great for clearing snow and ice off tops of trailers
• Manually propelled for use on hard level surfaces
• 48" long cantilevered platform
• Hydraulic hand pump raises & lowers cantilevered
   platform
• Open serrated grating steps and deck tread.
• Slip resistant climbing rungs
• 28"W x 60"L base, fixed outriggers spread to 69"
• Full rails on both sides, gates at each end of
   platform
• 2 swivel & 2 rigid 8" casters for use on hard
   surfaces
• Two adjustable stabilizing jacks secure lifts to
   ground
• Fixed platform height available
• Gray coat finish (Standard)
• 300 LB. CAPACITY
OPTIONAL ACCESSORIES
• Tool Tray
• Fluorescent tube holder
• Platform duplex receptacle

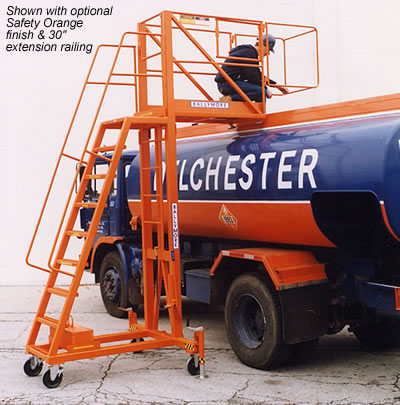

• Removable 30” extension rail
   optional (Shown)
• Safety Orange Powder Coat
   Optional
• For outdoor applications primer
   undercoat and powder coat finish
   is recommended
TANK TOP
Raised to Adjust
To The Height of
Your Working
Needs

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Price of the item you wish to purchase.


PRICING
Model No.
Platform Max
Height Min
Platform
Length
Platform
Width
Underclearance Height
Weight
Price
TT-913
13' 8"
9' 4"
48"
24"
Adjustable 9' to 13'
1525 lbs
TT-913F
13' 8"
9' 4"
48"
24"
Non-Adjustable 9' to 13'
1450 lbs
TT-7-11
11' 8"
7' 4"
48"
24"
Adjustable 7' to 11'
1450 lbs
TT-11-15
15' 8"
11' 4"
48"
24"
Adjustable 11' to 15'
1625 lbs
Optional Accessories
Tool Tray
Fluorescent tube holder
Platform duplex receptacle
Removable 30" extension railing
Safety orange powder coat finish (Recommended for outdoor applications)
