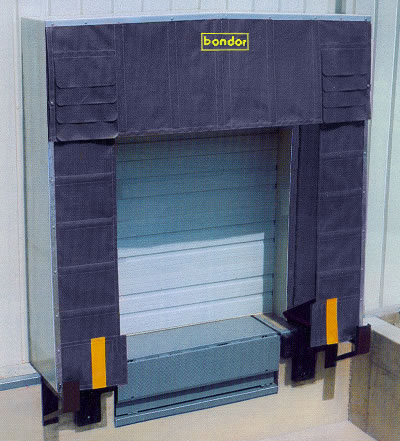

TS2000
SERIES
|
RIGID
DOCK SHELTER
|
For
door openings up to 10' wide x 12' high |
|
|
|
|
|
|
|
• BONDOR'S 22 oz. vinyl fabric construction
provides excellent tear and abrasion resistance
and superior weatherability. |
|
 |
|
|
|
|
|
|
|
|
• COLOR: Black (other colors
available
upon request). |
|
|
|
|
|
|
|
•

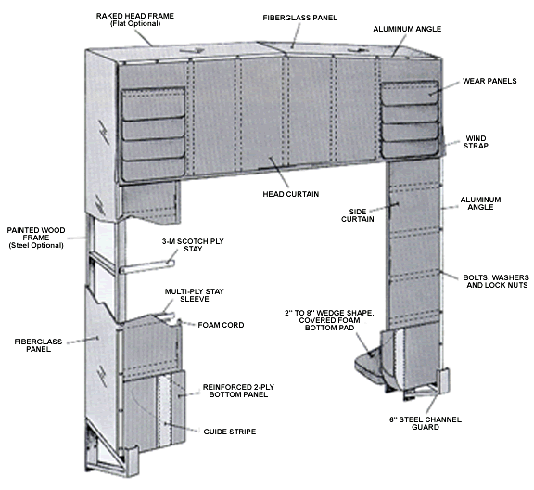

OVERLAPPING, Durable fabric panels at
critical wear areas of head curtain. |
|
|
|
|
|
|
|
•
BOTTOM REINFORCEMENTS 2-ply fabric
layer provides extra wear protection on lower
area of side curtains. |
|
|
|
|
|
|
|
•
GUIDE STRIPE Highly visible yellow strip
facilitates accurate truck positioning. |
|
|
|
|
|
|
|
|
•
FLEXIBLE STAYS 3-M Scotch Ply™ Stays
enable top and side curtains to firmly "hug" truck
body. |
|
|
|
|
|
|
|
|
•
REINFORCEMENT SLEEVES Multi-ply,
fabric stay encasements ensure cover longevity. |
|
|
|
|
|
|
|
|
•
FOAM BEADS Compressible, soft cord in
curtain edges conforms to truck body irregularities. |
|
|
|
|
|
|
|
|
•
THREAD Bonded, high tensile multi-cord
polyester using lockstitch and backtack sewing
technique throughout. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
•
FRAME Select, kiln-dried, pressure treated
wood assembled with screw shank nails and
counter sunk lag screws yielding superior
structural integrity. |
|
•
BOTTOM PADS Covered foam cushions prevent bottom
corner air filtration and complete the shelter enclosure. |
|
|
|
|
|
|
|
•
WIND STRAPS Protects head curtain from wind uplift
damage. |
|
|
|
|
|
|
|
•
RAKED HEADER 2" X 6" peaked at center
provides adequate drainage (Optional flat header
for low clearance). |
|
|
|
|
| •
TENSION CORD Maintains upper side curtain stability. |
|
|
|
|
|
•
STEEL GUARDS Factory painted, structural steel
channel configurations prevent damage from mis-aligned
trucks |
|
|
|
|
|
|
•
FIBERGLASS Translucent panels permit
natural light penetration through top and side
members. Secured to frame with 1" wide,
adhesive tipped, steel staples. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
•ALUMINUM
TRIM Polished angle perfects
corner appearance. |
|
|
DIMENSIONS |
|
|
|
|
|
|
|
|
____ "A"
SHELTER WIDTH
(6" Increments) (Recommended: 11'0" Min.-13'0" Max.)
____ "B" SHELTER HEIGHT
(6" Increments) (Recommended: 11'0" Min.-15'0" Max.
except ground level type)
____ "C"
HEAD FRAME PROJECTION
____ "D"
SIDE FRAME TOP PROJECTION
____ "E"
SIDE FRAME BOTTOM PROJECTION |
____ "F"
HEAD CURTAIN LENGTH
____ "G"
LEFT SIDE CURTAIN WIDTH
____ "H"
RIGHT SIDE CURTAIN WIDTH
____ "I"
DOOR WIDTH
____ "J"
DOOR HEIGHT
____ "K"
DOCK HEIGHT |
|
|
|
|
|
|
|
|
|
|
|
|
TO
ORDER A SERIES TS2000 DOCK SHELTER |
|
|
|
|
|
|
|
|
|
|
|
|
Remember
to order two dock bumpers per shelter
form our dock bumpers product section if they are
not existing. |
|
| 1. |
|
|
|
|
Select
the door size range I x J from the price
table below and the desired shelter projection
C-D-E. |
3. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 2. |
|
|
|
We
invite you to let our engineers review your dock
seal application. Complete the truck dock dimension
sheet on our contact page and we will confirm your
dock seal selection. |
|
Select
the model number from the table and
add the actual dock door size to complete
the model number. Example:
TS2000/116/11/24/10 W x 12 H. This model
would specify a shelter with a projection of 24"
for a door size 10' W x 12' H. |
|
|
|
| 4. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Note: Pricing includes Type A protective steel bumpers
for the shelter frame. |
|
|
|
|
|
|
|
|
|
SPECIFICATIONS |
|
Are based on a nominal dock
height K of 48". For different
dock heights and ground level doors "contact us" and fill
out a truck dock dimension sheet. Larger Door Sizes "Contact us". |
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click the Model No. of the item you wish
to purchase. |
|
|
I x J
Door size up to and Including |
C-D-E Projection from Building |
A
Shelter Width |
B
Shelter Height |
F
Head Curtain Drop |
TS2000 Dock Shelter - add door width x door height to base Model # below |
Price |
| 10' W
x 10' H |
24" |
11'-6" |
11' |
36" |
|
$1,705 |
| 10' W
x 12' H |
24" |
11'-6" |
13' |
60" |
|
$1,885 |
| 10' W
x 10' H |
36" |
11'-6" |
11' |
36" |
|
$2,050 |
| 10' W
x 12' H |
36" |
11'-6" |
13' |
60" |
|
$2,231 |
| 10' W
x 10' H |
48" |
11'-6" |
11' |
36" |
|
$2,423 |
| 10' W
x 12' H |
48" |
11'-6" |
13' |
60" |
|
$2,602 |
NOTES: A) Price includes all necessary
mounting brackets and hardware except building fasteners.
B)
We invite you to let our engineers review your dock seal application. Complete
the truck dock dimension
sheet on our contact page and we will confirm your dock seal selection. |
|
ARCHITECTURAL
SPECIFICATIONS - SERIES TS2000 |
Rigid Dock Shelter shall be
Series TS2000 as manufactured by the Bondor Division of FS Industries,
W. Greenwich,
RI, to fit door opening _____ wide x _____ high. Side and head curtain
fabric to be 22 oz. vinyl. Side curtains to be
reinforced with 22 oz. vinyl multi-ply bottom panels, equipped with yellow
guide stripes. Head curtain shall have
overlapping panels at each end. Rounded closed cell neoprene to be continuous
in side curtain edges. Curtains shall
encase *3-M "Scotch Ply" Stays (steel not acceptable) enclosed
by multi-layer reinforcement sleeves. Stays to be
spaced evenly with a maximum of 16" O.C. in side curtain and a 20"
maximum O.C. in head curtain. Shelter shall
consist of three rigid structural frames, having translucent fiberglass
secured to the exteriors. Head frame to be sloped
from center. Exterior frame corners shall be trimmed with aluminum angle.
One pair of wedge design covered
polyurethane foam bottom pads to be furnished per shelter. Pads to have
air exhaust and galvanized hardware. Unit
shall include two 6" structural steel channel guards.
* "Scotch Ply"™ 3-M Company |
|
Rigid Dock Shelter, Truck
Dock Shelter, Bondor, Dock Door Loading Seal, Dock Door Seals, Truck Dock
Seals, Dock Seals,
Loading Dock Door Seals, and Loading Dock Seals from your source for material
handling equipment. |
|
