WELDED
ALUMINUM SHIPS LADDER -
60° IBC DESIGN
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
IBC
Compliant safe access with minimum space requirement based
on IBC 1011.15 parameters (see below) |
|
|
|
|
|
|
|
|
STRONG-ATTRACTIVE-WEATHER
RESISTANT |
|
|
|
|
|
|
|
|
Acceptable
Usage: For industrial/commercial
maintenance access and industrial/commercial storage access. This is a steep
incline stair not
acceptable for public access, office use, or residental applications. |
|
|
|
|
|
|
|
|

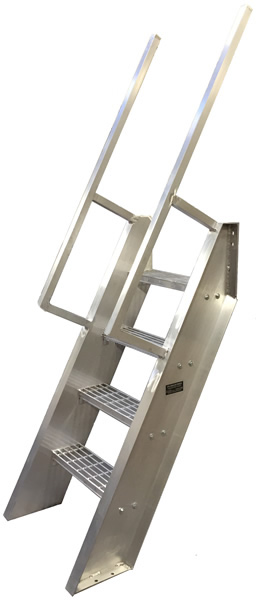

STEEP
INCLINE MILL FINISH ALUMINUM SHIPS LADDERS |
|
|
|
|
|
|
|
|
•
Quality engineered to your specific height requirement at a nominal 60°
angle of rise.
• Designed for safety and convenience.
• Heavy duty aluminum I bar grating stair treads won't sag or dish
(supplied as standard).
• Factory welded handrails of 1 1/2" x .125 aluminum (6063-T52)
square
tubing.
• 10" x 2.6" aluminum (6061-T6511) structural channel stringers.
• Fire proof construction.
• Standard 24" wide treads, 29 1/4" overall stair width.
Other widths available upon request.
• Tread depth is 8 5/8" I bar grating treads with nosing.
• Stainless Steel assembly hardware included.
• Min 5" tread run / 9 1/2" max riser height. |
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
Shipped
as 2 welded side frames and
1 bundle of treads for bolted assembly. |
|
|
|
|
|
|
|
Standard
Extended
Handrail Models |
|
|
|
|
|
|
|
|
SAFETY
WARNING: These ladders are to be ascended and
descended with the user always facing the ladder. Never descend
the ladder facing away from the ladder. |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
 |
|
|

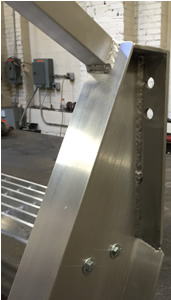

Welded
Top Mounting Plates
With Lag Holes |
|
|
|
|
|
|
|
|
|
 |
|
|
|
Welded
Footplate with
Lag Holes |
|
|
|
|

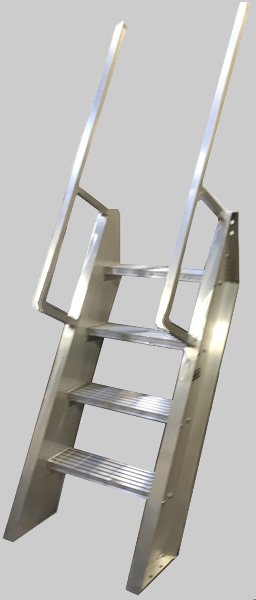

Comfortable
Handrail Design |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IBC
CONFORMANCE - See Details Below Price Tables |
|
|
|
|
| CUSTOM
SIZES - SAME DAY QUOTES |
|
|
|
|
Custom
sizes and configurations are readily available. We provide same day price
quotes if you require a special stair
angle, specific tread rise/run, or a maximum horizontal stair run to satisfy
available floor space constraints. |
|
|
|
|
 |
|
|
 |
|
|
|
|

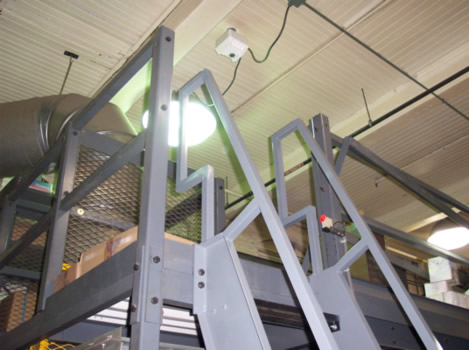

Vertical
Handrail to 42" guard height
optional on ships ladders. (AVHR) |
|
Walk-thru handrail
optional on ships ladder (AWTHR) |
|
|
|

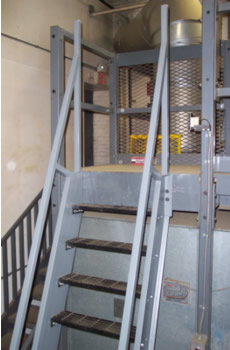

Painted
Steel Ships Ladder Shown with Walk-Thru Handrail. |
|
|
|
(Painted
Steel Ships Ladder
Shown with Vertical Handrail.) |
|
|
|
|
 |
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click a Model No. of the item you wish to
purchase. |
|
|
Model
No. AVHR Add $220.00to
standard
pricing |
|
Model
No. AWTHR Add $327.00 to
standard pricing |
|
|
|
|
|
|
|
|
|
|
|
|
|

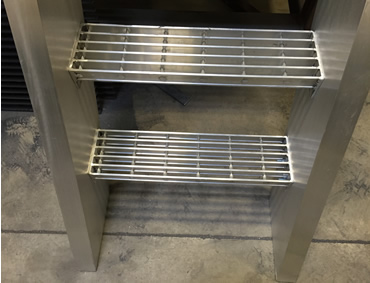

I
Bar Aluminum Treads |
|
|
|
|
|
|
|
|
 |
|
|
|
|
 |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
I
Bar grating stair treads are safe, self-cleaning, skid-resistant
and economical. |
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Important
Note When Ordering: Specify actual floor to floor
height when ordering, stairways are custom designed to meet your height
requirements. (A Dimension) *Other
sizes available upon request. |
|
|
|
|
Order
Online, by Phone, or by E-Mail |
|
|
|
~ Add
items to your online shopping cart ~
Click a Model No. of the item you wish to
purchase. |
|
|
|
(C)
PRICING FOR STANDARD EXTENDED HANDRAIL MODELS |
Type
Model No. |
(A) Height Range |
(B)
Horizontal Run |
Tread
Width |
Nominal
Overall
Width |
Price With
I Bar Grating
Treads |
Low Ht.
(in.) |
Upper
Ht. (in.) |
|
36" |
41" |
27
7/8 - 31 3/4 |
24" |
29
1/4" |
$2,532 |
|
42" |
47" |
32
3/16 - 34 5/16 |
24" |
29
1/4" |
$2,671 |
|
48" |
53" |
34
3/4 - 38 7/16 |
24" |
29
1/4" |
$2,811 |
|
54" |
59" |
38
15/16 - 41 5/16 |
24" |
29
1/4" |
$2,950 |
|
60" |
65" |
41
3/4 - 45 5/16 |
24" |
29
1/4" |
$3,090 |
|
66" |
71" |
45
3/4 - 48 3/16 |
24" |
29
1/4" |
$3,229 |
|
72" |
77" |
48
5/8 - 52 1/8 |
24" |
29
1/4" |
$3,368 |
|
78" |
83" |
52
5/8 - 55 1/16 |
24" |
29
1/4" |
$3,508 |
|
84" |
89" |
55
9/16 - 59 |
24" |
29
1/4" |
$3,647 |
|
90" |
95" |
59
7/16 - 62 |
24" |
29
1/4" |
$3,787 |
|
96" |
101" |
59
7/16 - 65 7/8 |
24" |
29
1/4" |
$3,987 |
|
102" |
107" |
66
3/8 - 68 15/16 |
24" |
29
1/4" |
$4,130 |
|
108" |
113" |
69
7/16 - 72 3/4 |
24" |
29
1/4" |
$4,324 |
|
114" |
119" |
73
5/16 - 75 7/8 |
24" |
29
1/4" |
$4,467 |
|
120" |
125" |
76
7/16 - 79 5/8 |
24" |
29
1/4" |
$4,610 |
|
126" |
131" |
80
3/16 - 82 3/4 |
24" |
29
1/4" |
$4,753 |
|
132" |
137" |
83
5/16 - 86 1/2 |
24" |
29
1/4" |
$4,895 |
|
138" |
143" |
87
1/16 - 89 3/4 |
24" |
29
1/4" |
$5,038 |
|
144" |
149" |
90
1/4 - 93 1/2 |
24" |
29
1/4" |
$5,181 |
|
150" |
155" |
93
15/16 - 96 5/8 |
24" |
29
1/4" |
$5,324 |
|
156" |
161" |
97
1/8 - 100 3/8 |
24" |
29
1/4" |
$5,467 |
|
162" |
167" |
100
7/8 - 103 9/16 |
24" |
29
1/4" |
$5,609 |
|
168" |
173" |
104
1/8 - 107 1/4 |
24" |
29
1/4" |
$5,752 |
|
174" |
179" |
107
13/16 - 110 7/16 |
24" |
29
1/4" |
$5,895 |
|
180" |
185" |
111
- 114 1/4 |
24" |
29
1/4" |
$6,038 |
|
186" |
191" |
114
3/4 - 117 7/16 |
24" |
29
1/4" |
$6,181 |
|
SAFETY
WARNING: These ladders are to be ascended and
descended with the user always facing the ladder.
Never descend the ladder facing away from the ladder. |
|
|
IBC
1011.15 CONFORMANCE |
|
|
1011.15
Ships ladders. Ships ladders are permitted to be used in Group I-3 as
a component of a means of egress
to and from control rooms or elevated facility observation stations not
more than 250 square feet (23 m²) with not
more than three occupants and for access to unoccupied roofs. The minimum
clear width at and below the handrails
shall be 20 inches (508 mm) |
|
|
|
1011.15.1 Handrails
of ships ladders. Handrails shall be provided on both sides of
ships ladders. |
|
|
|
1011.15.2 Treads
of ships ladders. Ships ladders shall have a minimum tread depth of
5 inches (127 mm).
The tread shall be projected such that the total of the tread depth plus
the nosing projection is not less than
8 1/2 inches (216 mm). The maximum riser height shall be 9 1/2 inches (241
mm) |
|
Welded Aluminum Ships Ladder,
Hatch Access, Roof Access Ladders, Ladders, Ships Ladder, 60° IBC
Design, Structural Steel
Stairways Ships Ladder Design, Access with Minimum Space Requirement,
Bar Grating Stair Treads, Welded Handrails, Fire Proof
Construction, and Galvanized Stairs from your complete source for material
handling equipment. |
|
