ZERO LIFTS

XZ Series Floor Level Lifts
These industrial grade, hydraulic scissor lift tables feature a unique pan-style platform that sits only 3/8" above
the floor when fully lowered. This low-profile design allows them to be loaded and unloaded by a hand pallet
truck. Use them in facilities where fork lifts or stackers aren't available. An additional advantage of hand pallet
truck accessibility is the opportunity for workers to function at their own pace without having to wait for a fork
lift and certified operator to load the lifts for them. With capacities up to 6,000 lbs. and multiple platform (pan)
sizes, virtually any load can be accommodated.

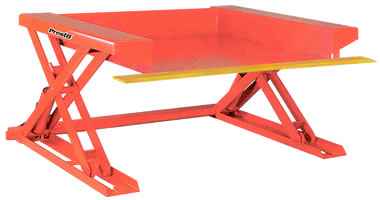

XZ Series Floor Level Lift
XZ Series Lift - Side View
Side View of Zero Lift
Features
• Available in 2,000 lb, 4,000 lb and 6,000 lb capacities
• Loads can be accessed from 4 sides with minimal
   reach over
• 35" vertical travel
• External 1 HP 115/1/60 power unit
• Optional power units available
• Foot or hand-held control
• 6" flexible yellow safety toe guard
• Lifting eyes for safe positioning
• Custom designs available

Order Online, by Phone, or by E-Mail

~ Add items to your online shopping cart ~
Click the Model No. of the item you wish to purchase.


XZ Series Floor Level Lift Prices
Model No.
Lift
Capacity
Platform
Size W x D
Lowered
Height
Raised
Height
Dimensions
W x L
Lifting
Speed
Shipping
Weight
Price
XZ44 Series
2000 lbs
44" x 48"
3/8"
35 3/8"
61 1/4" x 59"
40 sec
1300 lbs
$9,110
4000 lbs
44" x 48"
3/8"
35 3/8"
61 1/4" x 59"
44 sec
1325 lbs
$9,520
XZ50 Series
2000 lbs
50" x 48"
3/8"
35 3/8"
67 1/4" x 59"
40 sec
1400 lbs
$9,110
4000 lbs
50" x 48"
3/8"
35 3/8"
67 1/4" x 59"
44 sec
1425 lbs
$9,520
